Name: UPRIGHT DISHWASHER
SKU: 45220
Price: 4999.00 CAD
Availability: InStock

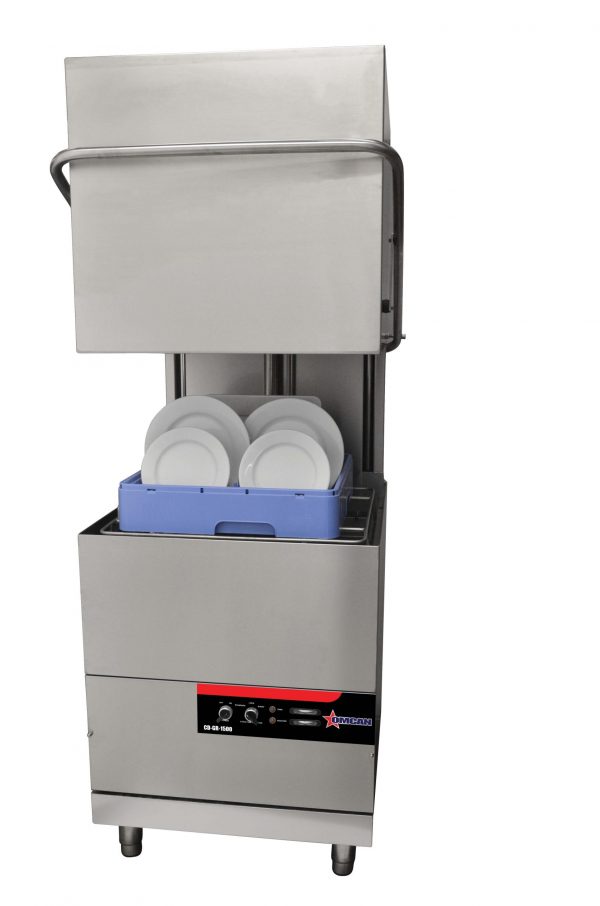

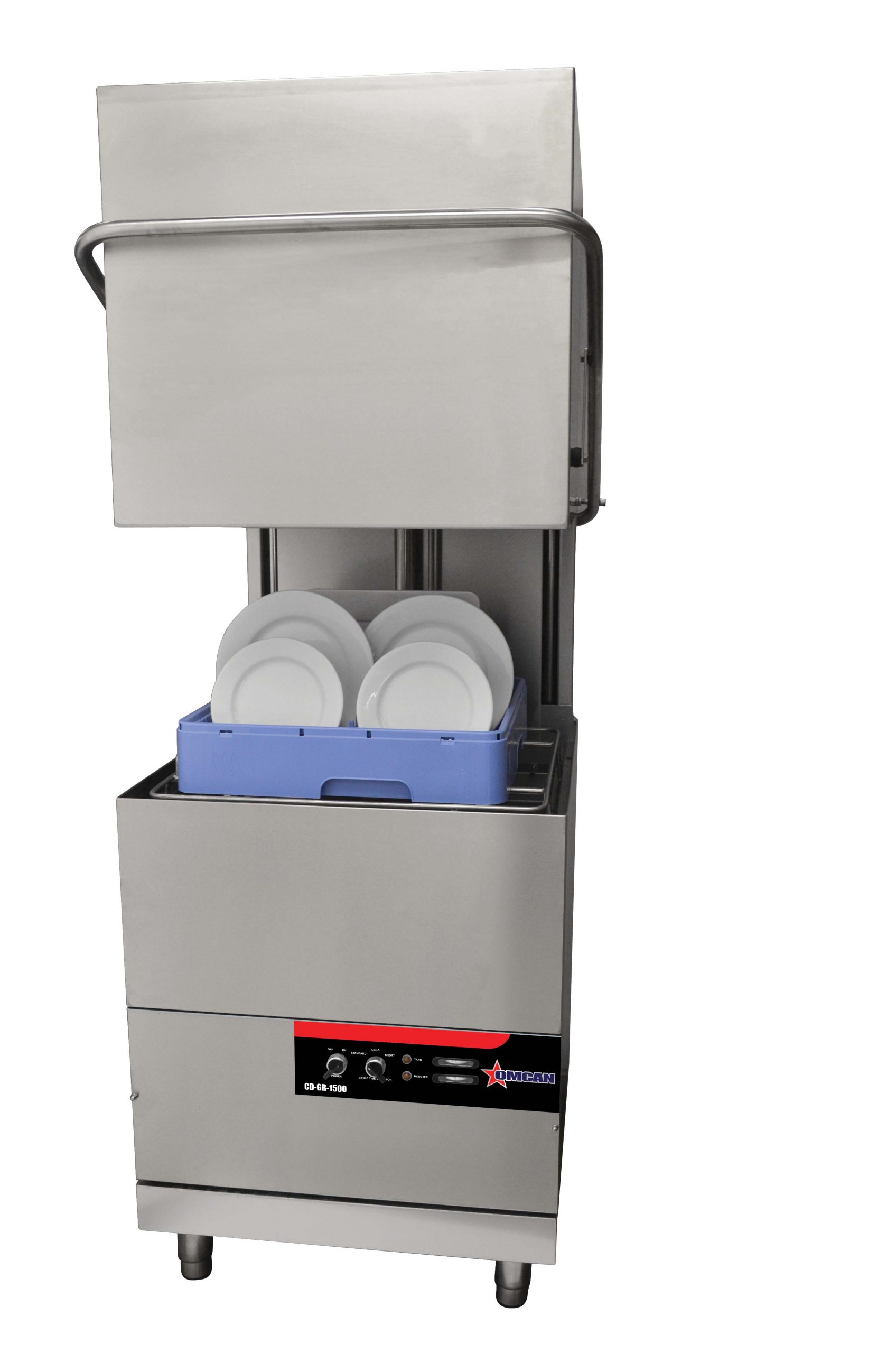

UPRIGHT DISHWASHER

Upright Dishwasher

Washing pump: IP44
Standard tank and boiler thermometer
Thermal protection for wash and tank booster
Standard rinse temperature thermo detector 3 washing cycle
Straight or corner convertibility
Proof rinse feature ensures proper sanitized rinse cycle temperature
NSF certified indicators for wash temperature, rinse temperature and rinse pressure
304 stainless steel body and handle, heavy duty & corrosion resistant
Upper and lower wash/rinse arms with high temperature cycles (temp.165-195°F/ 74-91°C )
1 peg rack, 1 flat rack & 1 cutlery tray included

Send an inquiry

Please, insert your name

Please, insert your email

Please, insert the message

Description

Undercounter Dishwasher

ITEM NUMBER	45220	View PDF Specs \| View Instruction and Parts Manual
MODEL	CD-GR-1500
BASKET SIZE	20” x 20”/ 500 x 500 mm
WASH PUMP	1.5 HP
CAPACITY	Booster tank: 7.4/ 1.95G, Wash tank: 68L/18G
HEATING ELEMENT	Booster tank: 7.5 kW, Wash tank: 6 kW
POWER	8.2 kW
ELECTRICAL	208-240V/ 60hz/ 1ph
AMP	46A
HOT WATER REQUIREMENTS	.5” GPC (2LPC) 50°C/ 120°F
WATER LINE REQUIREMENTS	.75” Hose supplied
WATER PRESSURE REQUIREMENTS	30-72 PSI
DRAIN LINE	1.38” / 35 mm Hose supplied
DOOR CLEARANCE	16”/ 400 mm
NET DIMENSIONS (WDH)	(Close position) 29.5” x 34.6” x 55.6”/ 750 x 880 x 1412 mm
GROSS DIMENSIONS	30” x 35” x 57”/ 762 x 889 x 1447.8 mm
NET WEIGHT	245 lbs/ 111 kg
GROSS WEIGHT	266 lbs/ 120.7 kg
